配置基于MAC地址划分VLAN

网工

配置基于MAC地址划分VLAN示例 - 配置基于VLAN的VLAN Mapping - CloudEngine 12800 V200R024C10 配置指南-以太网交换 - 华为

此实验中配置结果为：

User1、User2、User3可以访问公司网络，如换成其他外来用户则不能访问。

为了实现这个效果，需要将cloud连接外网进行实验，此处参考：

使用Ensp连接外网进行实验_环回适配器如何共享网络-CSDN博客

使用eNSP云连接外网-阿里云开发者社区

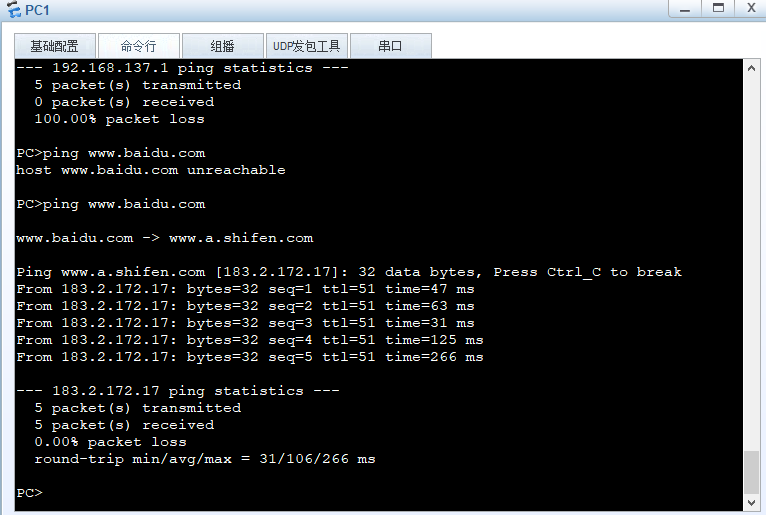

image-20250529204245558

image-20250603081104357

!Software Version V200R005C10SPC607B607
!Last configuration was updated at 2025-06-03 08:02:31+00:00
!Last configuration was saved at 2025-06-03 07:48:15+00:00
#
sysname Switch1
#
vlan batch 10
#
interface GE1/0/0
 undo shutdown
 port default vlan 10
#
interface GE1/0/1
 undo shutdown
 port default vlan 10
#
interface GE1/0/2
 undo shutdown
#
interface GE1/0/3
 undo shutdown
 port default vlan 10
 mac-vlan enable
!Software Version V200R005C10SPC607B607
!Last configuration was updated at 2025-06-03 07:54:25+00:00
!Last configuration was saved at 2025-06-03 07:54:30+00:00
#
sysname Switch2
#
vlan batch 10
#
vlan 10
 mac-vlan mac-address 0022-0022-0022
 mac-vlan mac-address 0033-0033-0033
#
interface GE1/0/0
 undo shutdown
 port link-type hybrid
 port hybrid untagged vlan 10
 mac-vlan enable
#
interface GE1/0/1
 undo shutdown
 port link-type hybrid
 port hybrid untagged vlan 10
 mac-vlan enable

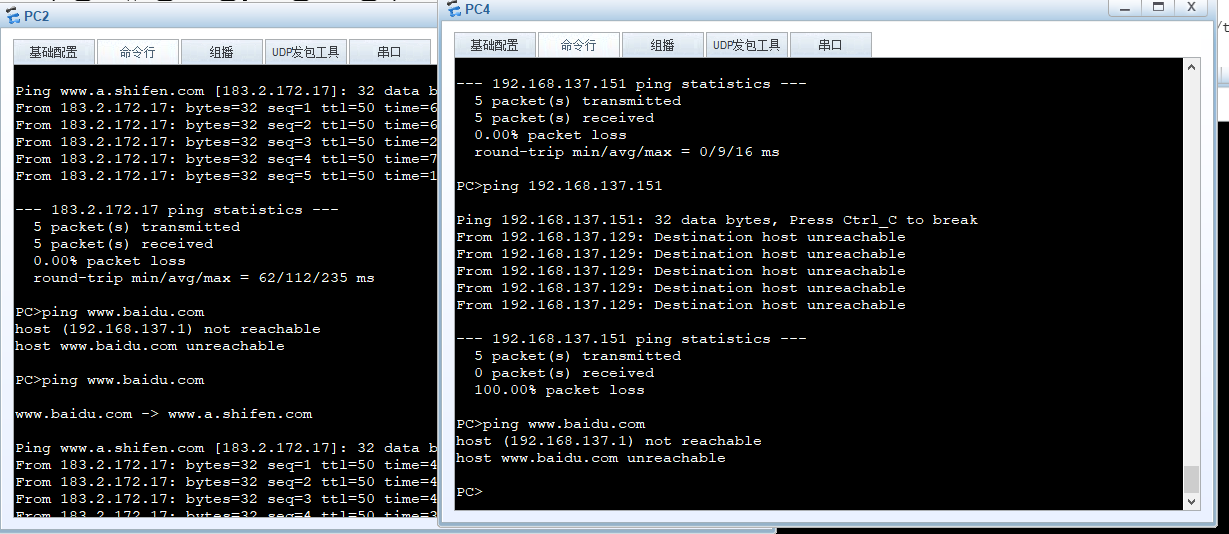

最终效果如图：

image-20250603080446134
